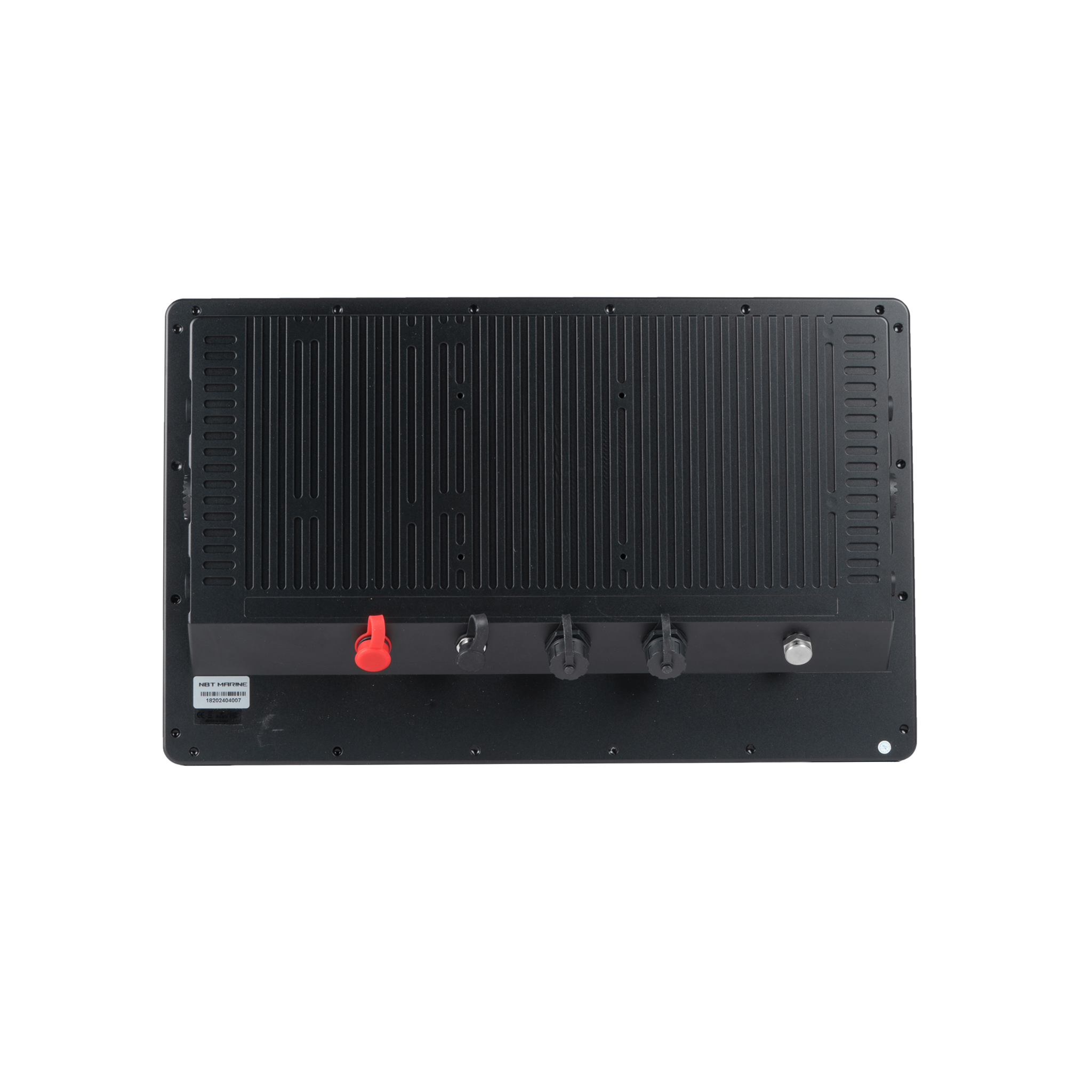

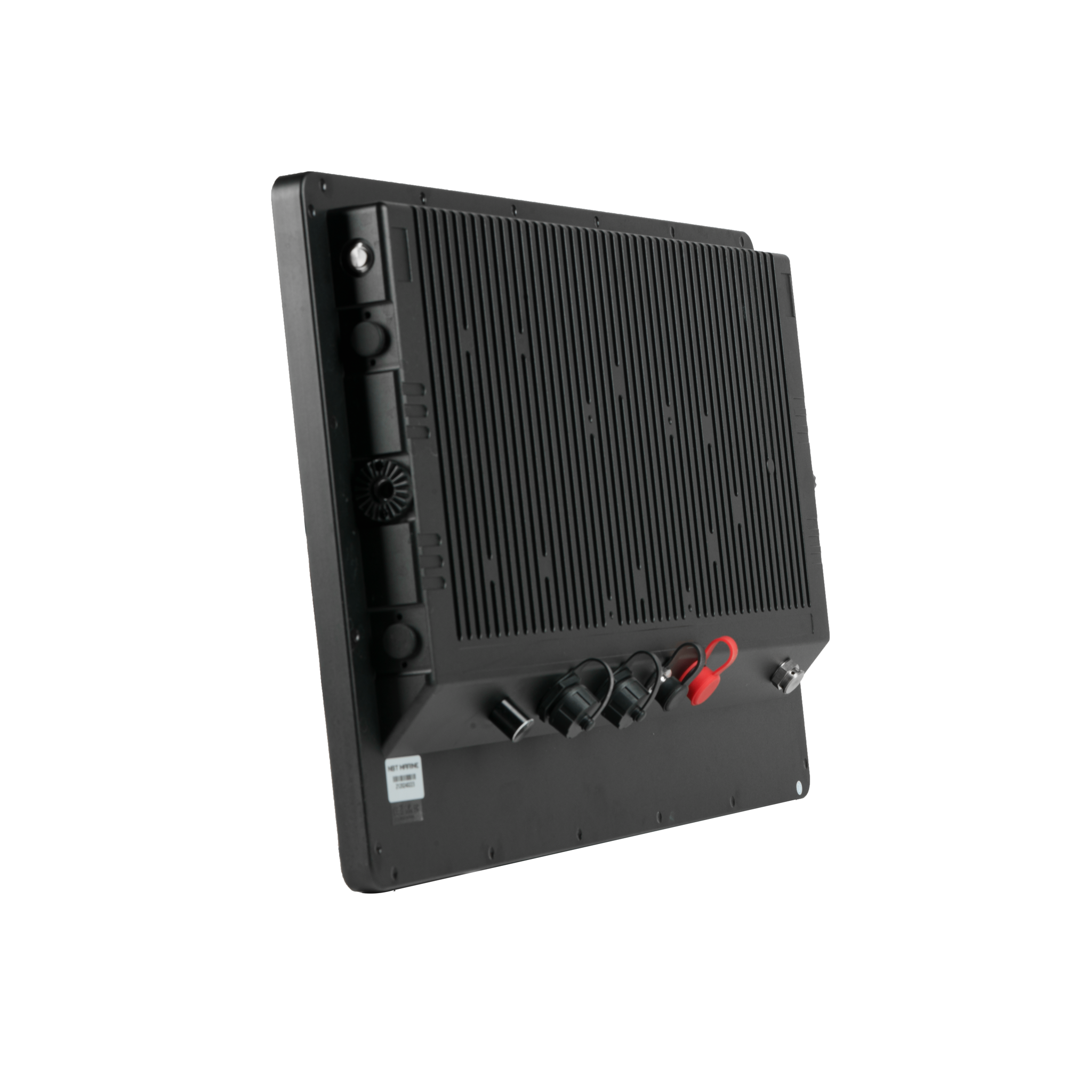

18" NBT Cruiser Unit

Specifications

• Display Resolution - 1920x1080
• Weight - 13LBS
• Waterproof - IP67

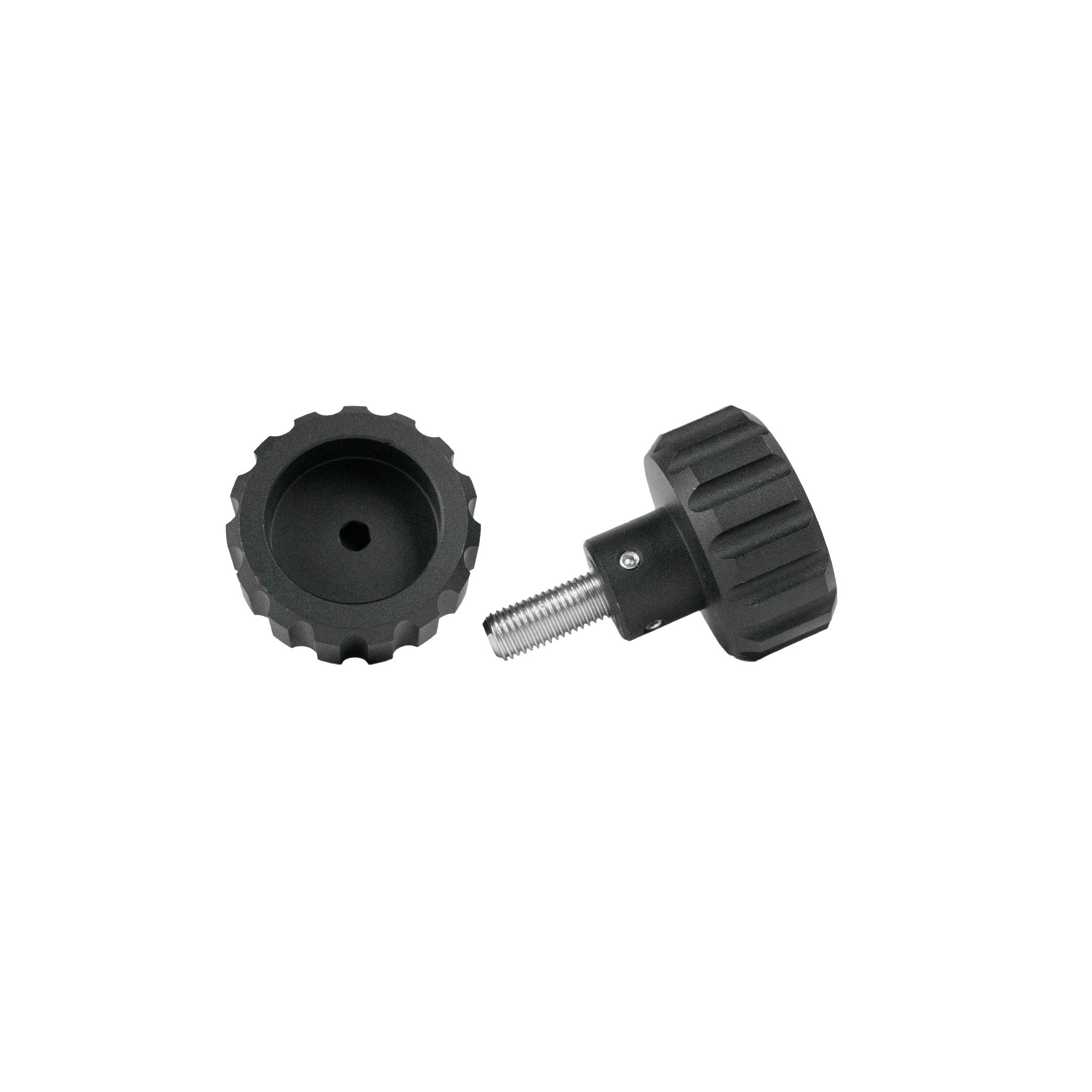

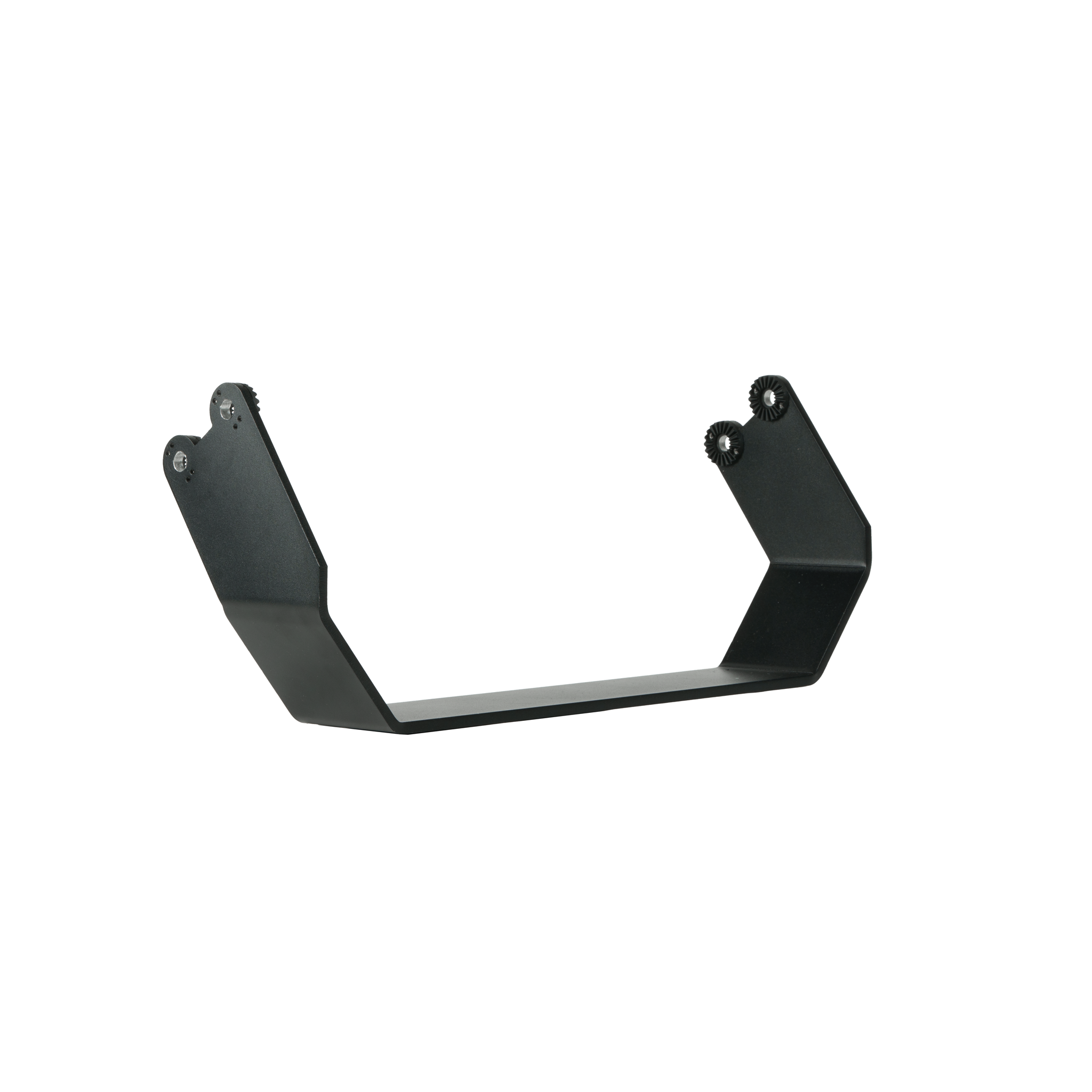

• Mounting Options - Included gimbal
• Touch screen
• Dimensions 18.3" x 11.5" x 21.5"
• Display Size 18.3" diagonal
• Glass Type - Optical Bonding, with Anti-Glare  UV coatings
• Brightness - 1500 NITS (vivid sunlight readable)
•  Operational Temperature - -20c to +75C (-4F to +170F)
• Touch Type - 10 Points Capacitive touch, Touch ON/OFF control

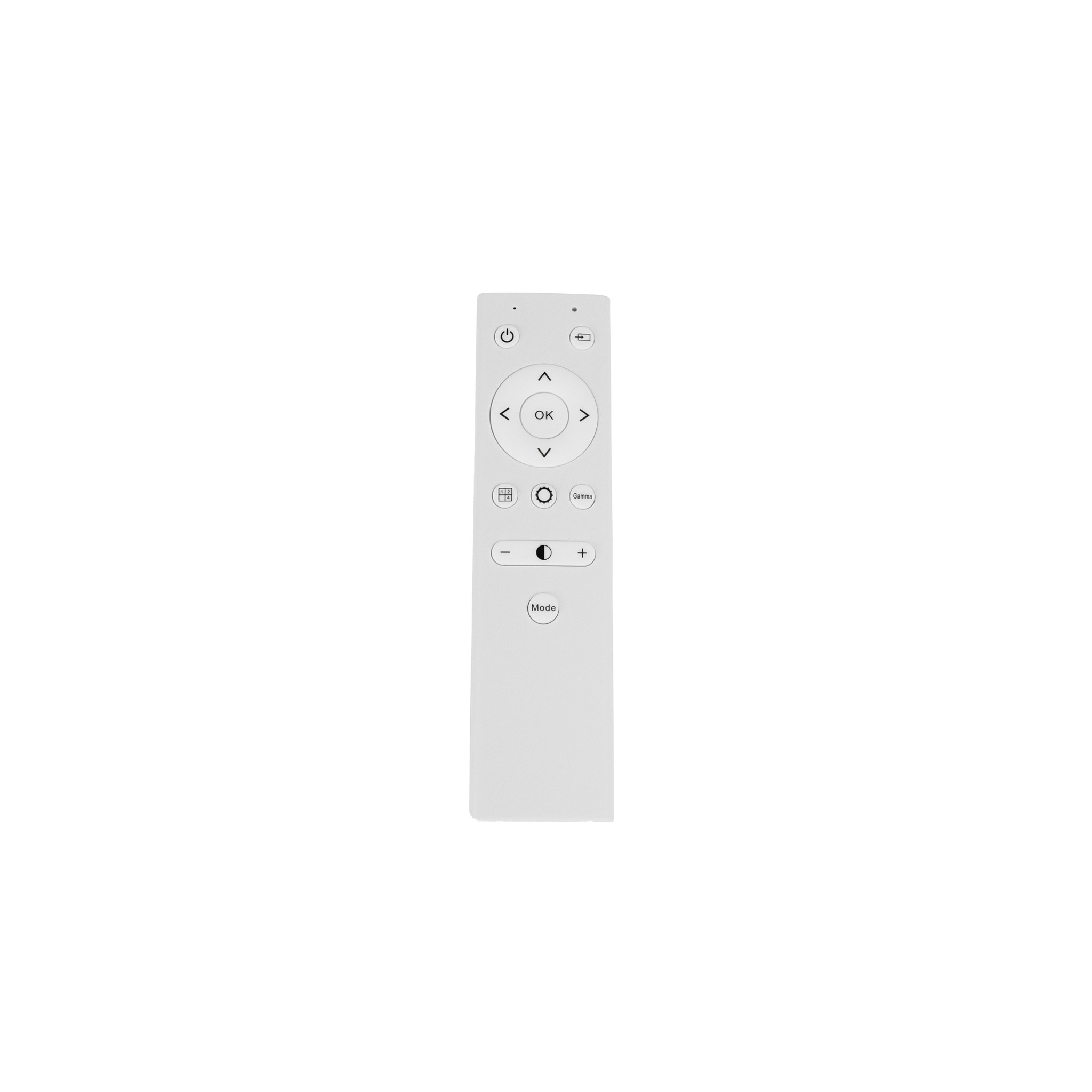

• Remote OSD - Included remote control
• Rugged Shock - 20G
•  NOTE - Polarization has been upgraded

Sonar Features and Compatibility

• LIVESCOPE - All compatible units up to 2 Live scopes
• SIDE VU / DOWN VU - All compatible XSV units or GCV box
• Up to 6 Split screen boxes!

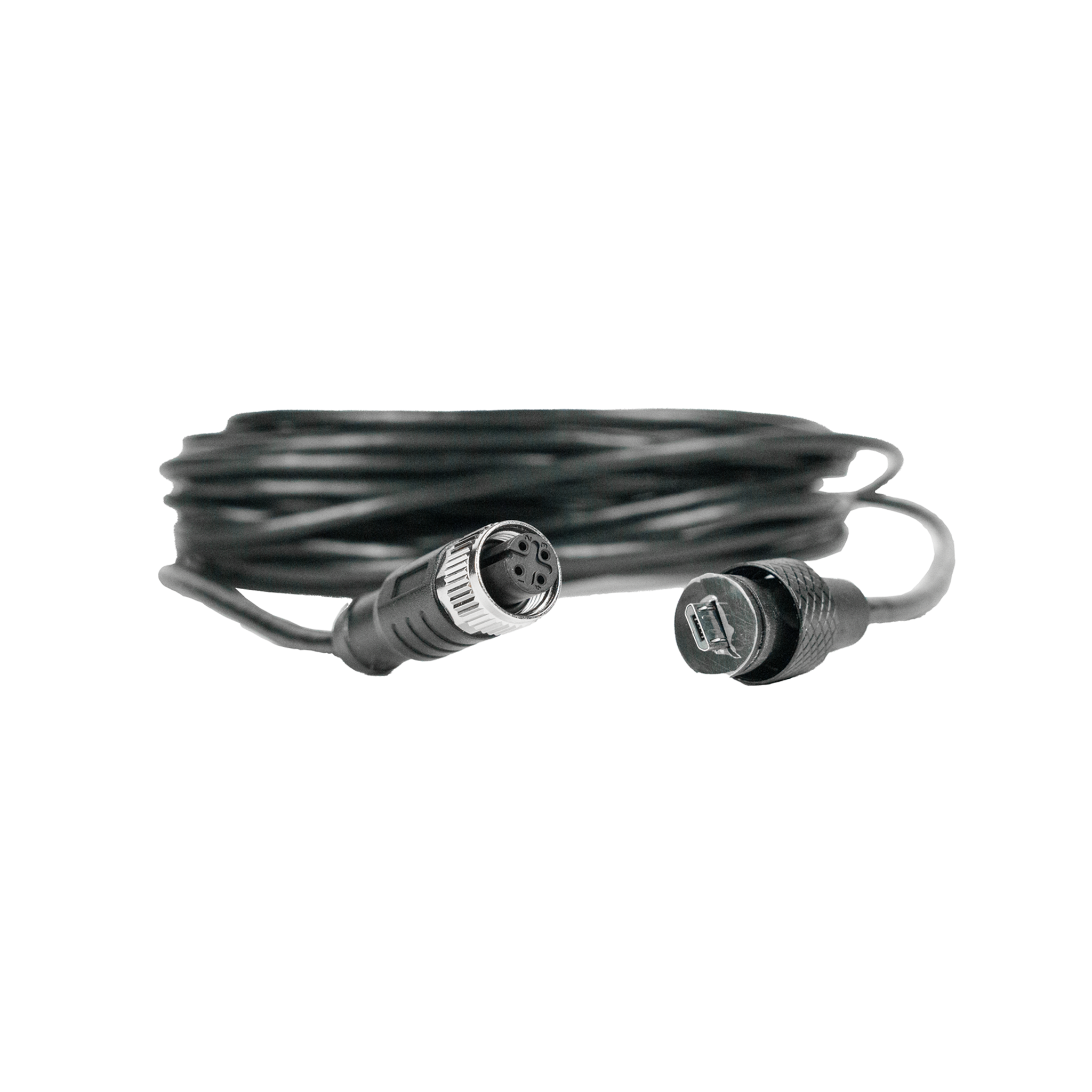

Cords/Cables

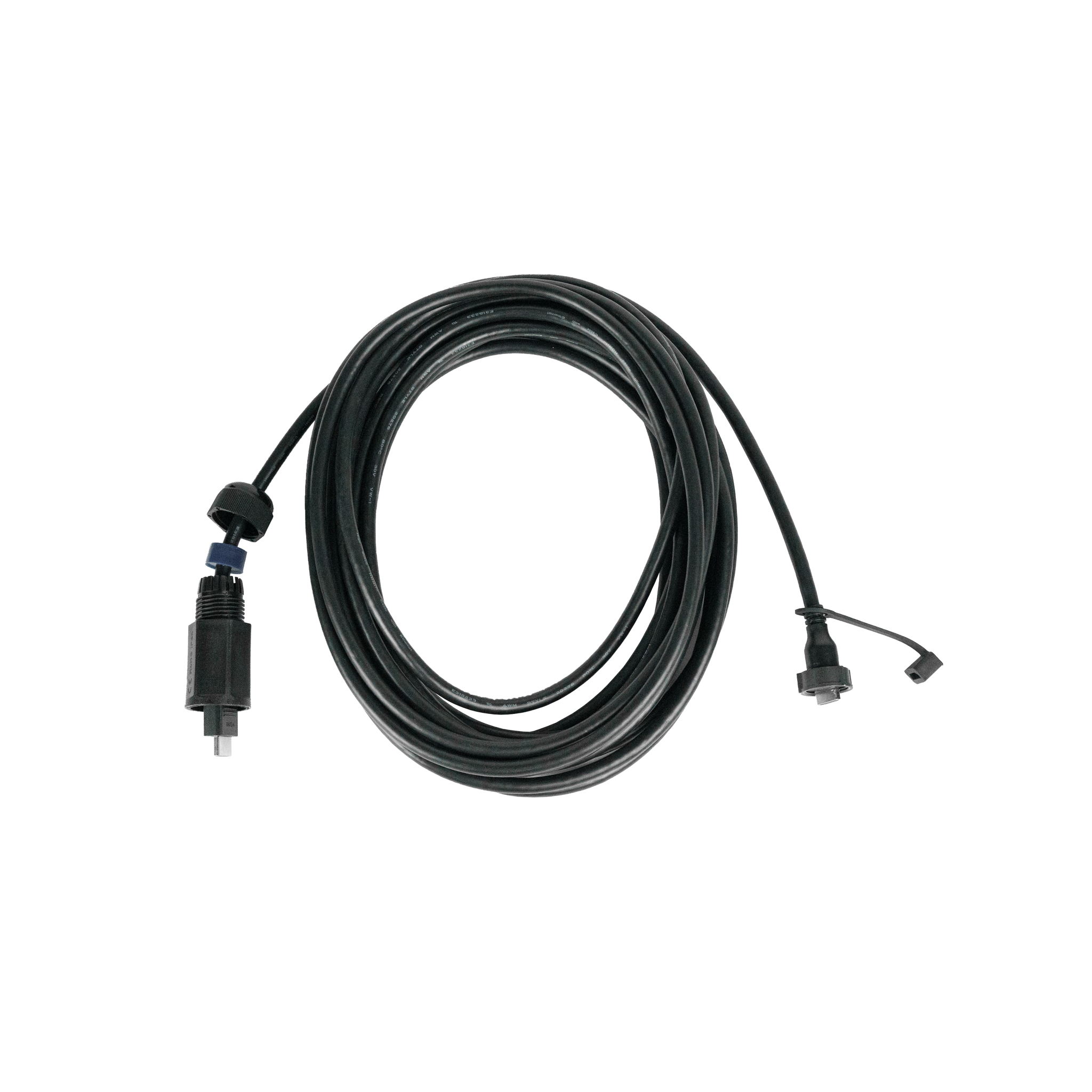

• HDMI CABLE - 8 meters (26 feet)

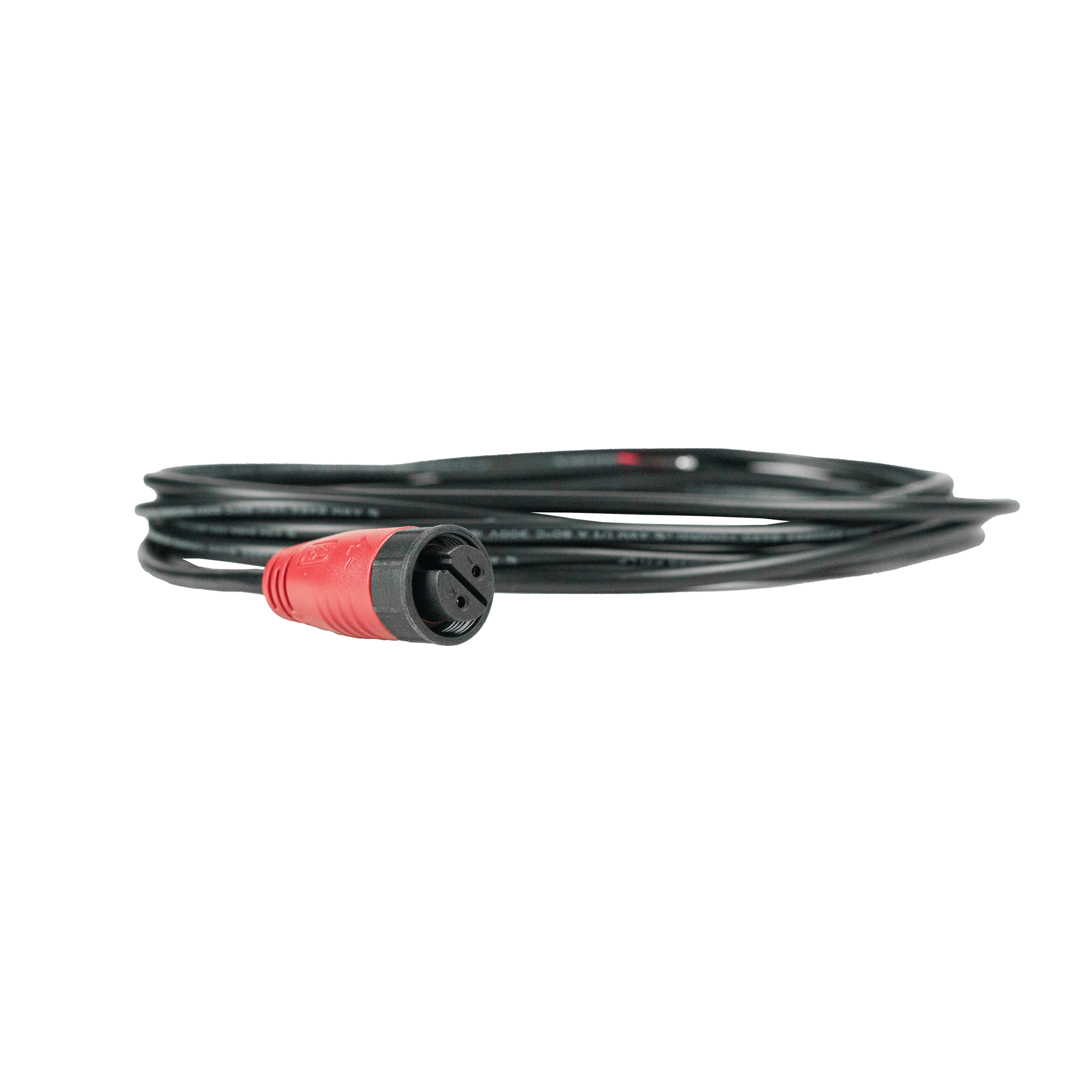

• DC POWER CABLE - 4 meters (13 feet)
• USB CABLE - 8 meters (26 feet)

Electrical Features

• POWER INPUT - 1 x DC 10V to 28V
• TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
• MAXIMUM CURRENT DRAW AT 12 VDC - 6A

Compatible Chart plotters

• GARMIN 8700
• GARMIN 1643 (XSV) or NON
• GARMIN 8610 8410 (XSV) or NON - some limitations
• GARMIN 8612 8412 (XSV) or NON
• GARMIN 8616 8416 (XSV) or NON
• GARMIN 1243 (XSV) or NON - some limitations
