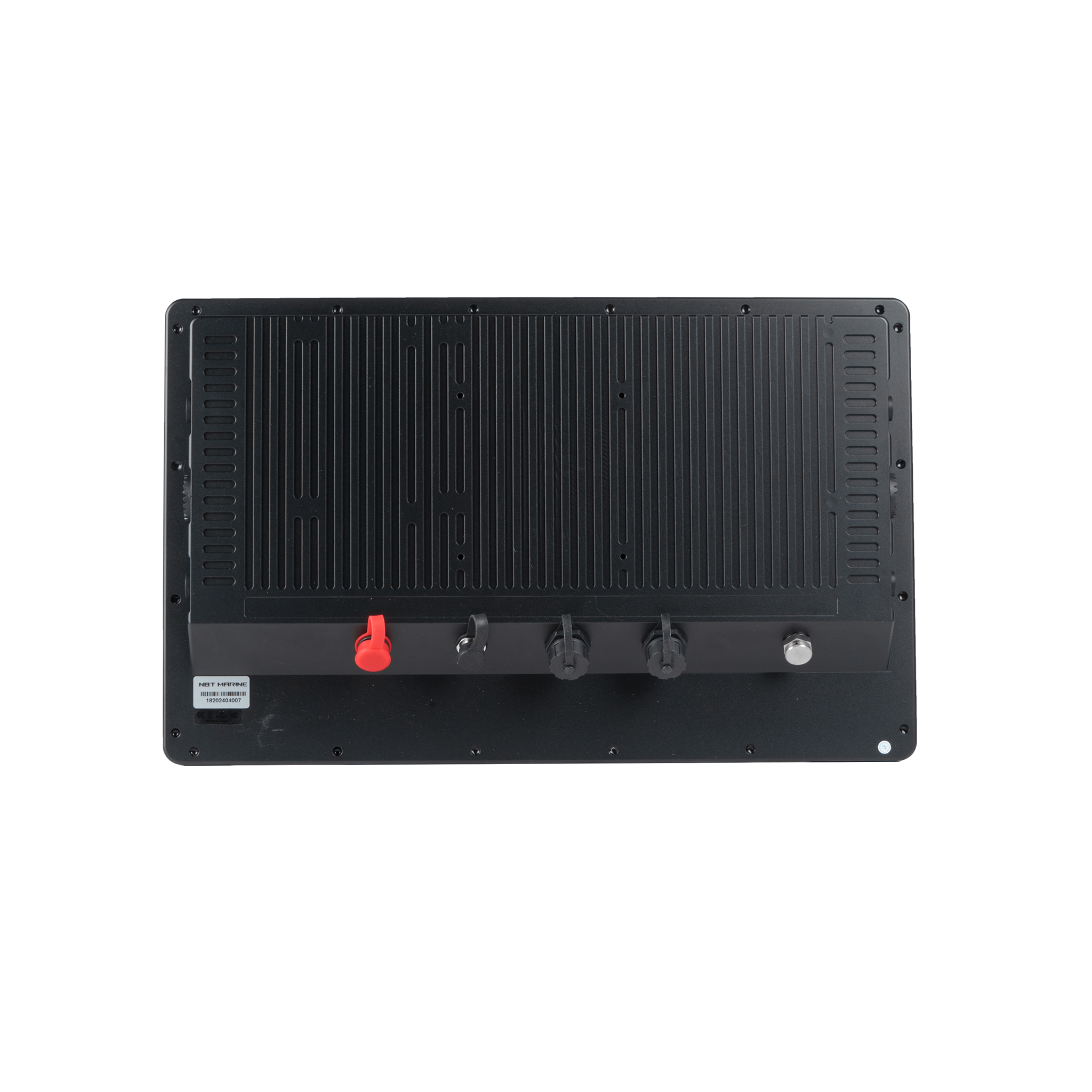

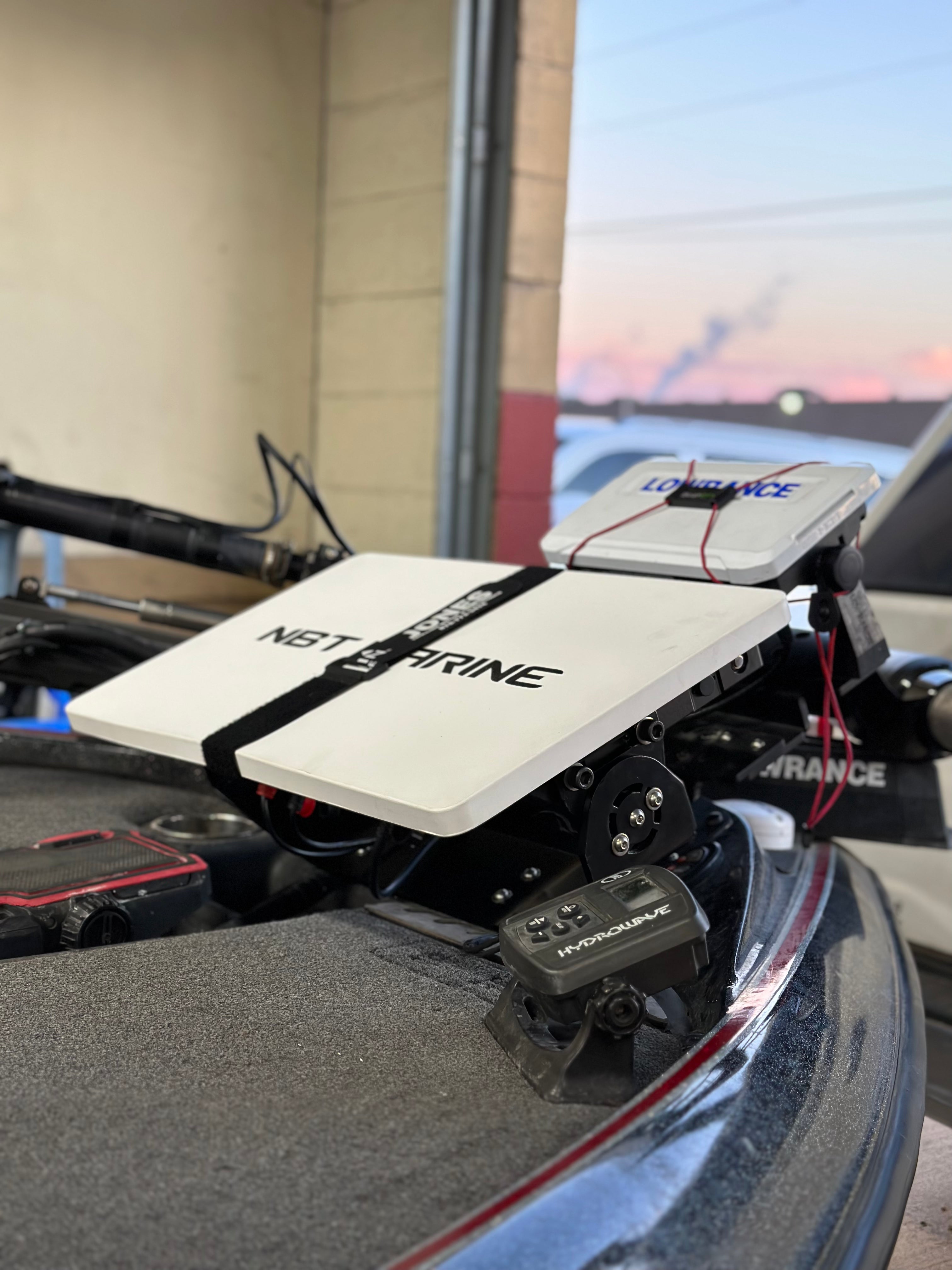

22" NBT Battleship Unit
The All new 22 Inch Battleship Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243/1643 units. (see below for compatible unit lists)
Specifications
- Display Resolution - 1920x1080
- Weight - 7.5KG (16.5LBS)
- Waterproof - IP67

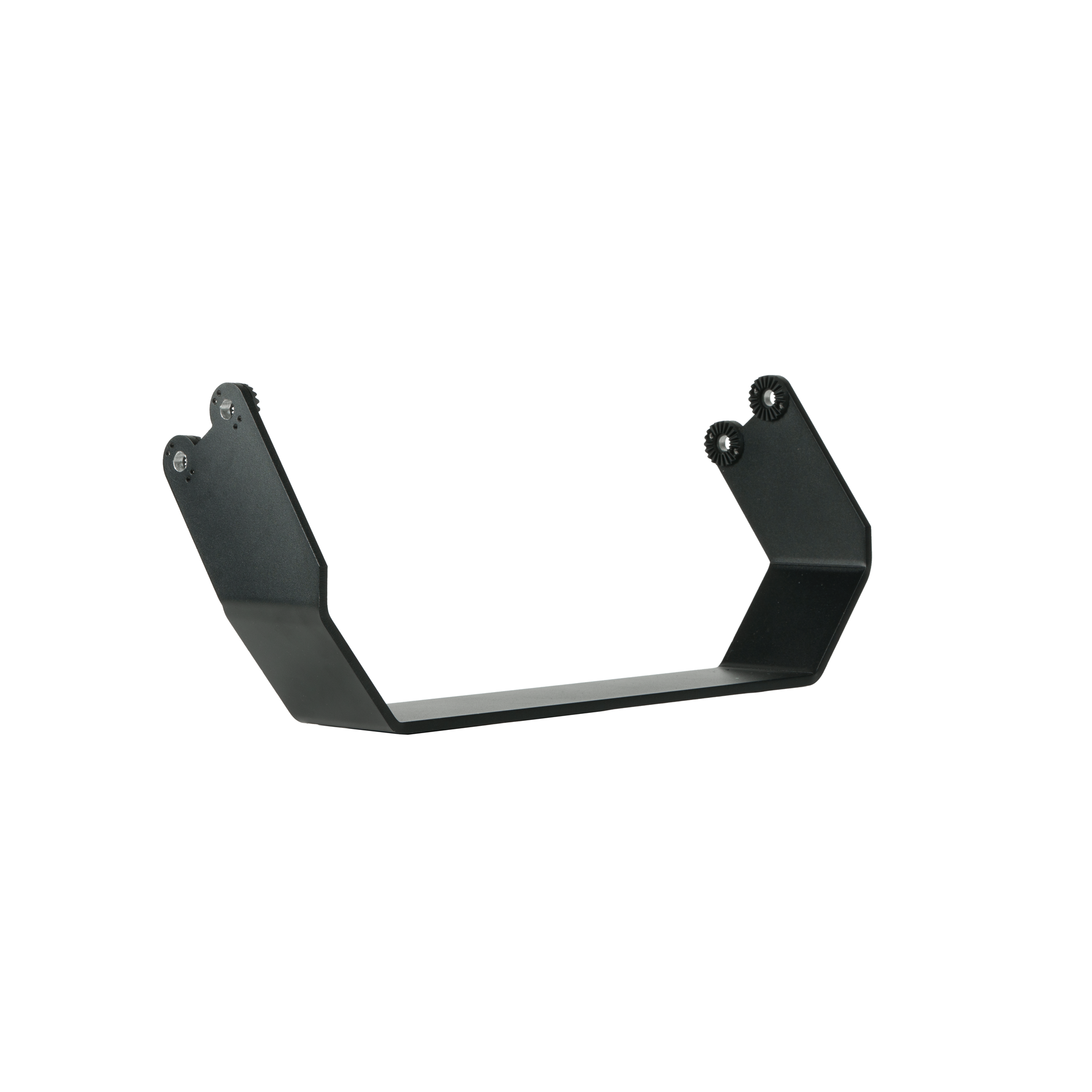

- Mounting Options - Included gimbal
- Touch screen
- Dimensions 21.3" x 13" x 23.1" diagonal
- Display Size 21.6" diagonal
- Glass Type - Optical Bonding, with Anti-Glare UV coatings
- Brightness - 1500 NITS (vivid sunlight readable)
- Operational Temperature - -20c to +75C (-4F to +170F)
- Touch Type - 10 Points Capacitive touch, Touch ON/OFF control

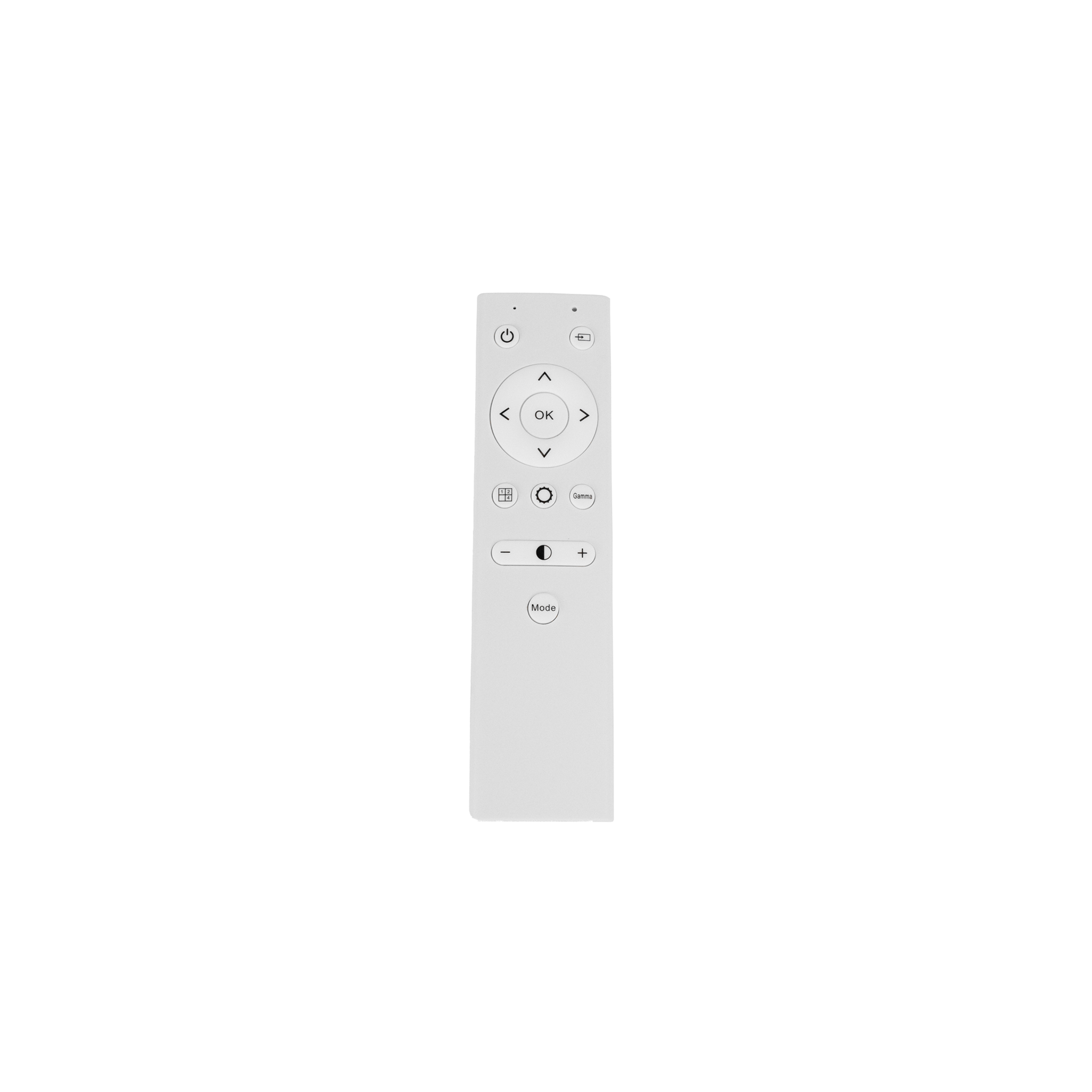

- Remote OSD - Included remote control
- NOTE - Polarization Features have been Upgraded

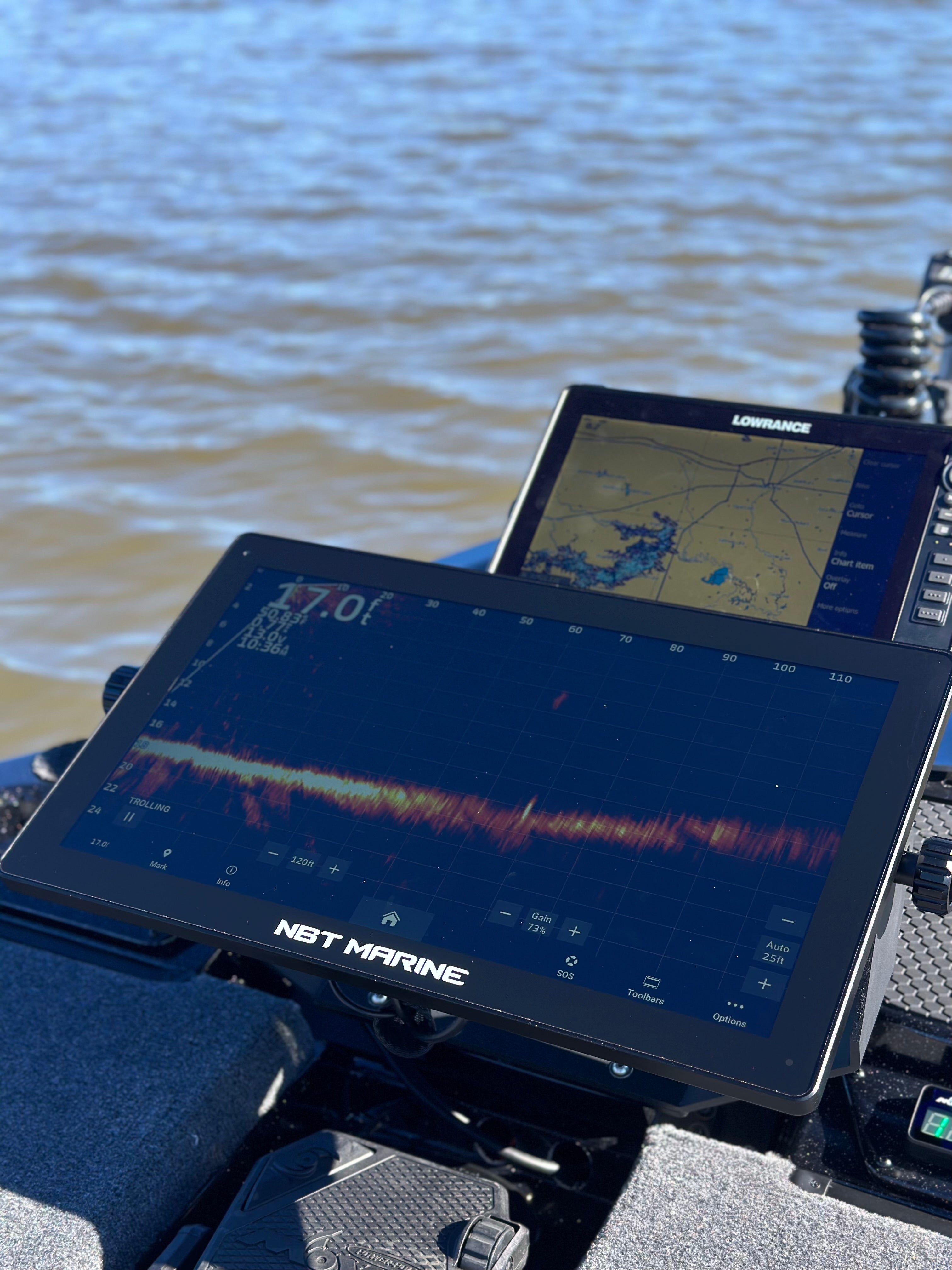

Sonar Features and Compatibility
- LIVESCOPE - All compatible units up to 2 Live scopes
- SIDE VU / DOWN VU - All compatible XSV units or GCV box
- Up to 6 Split screen boxes!

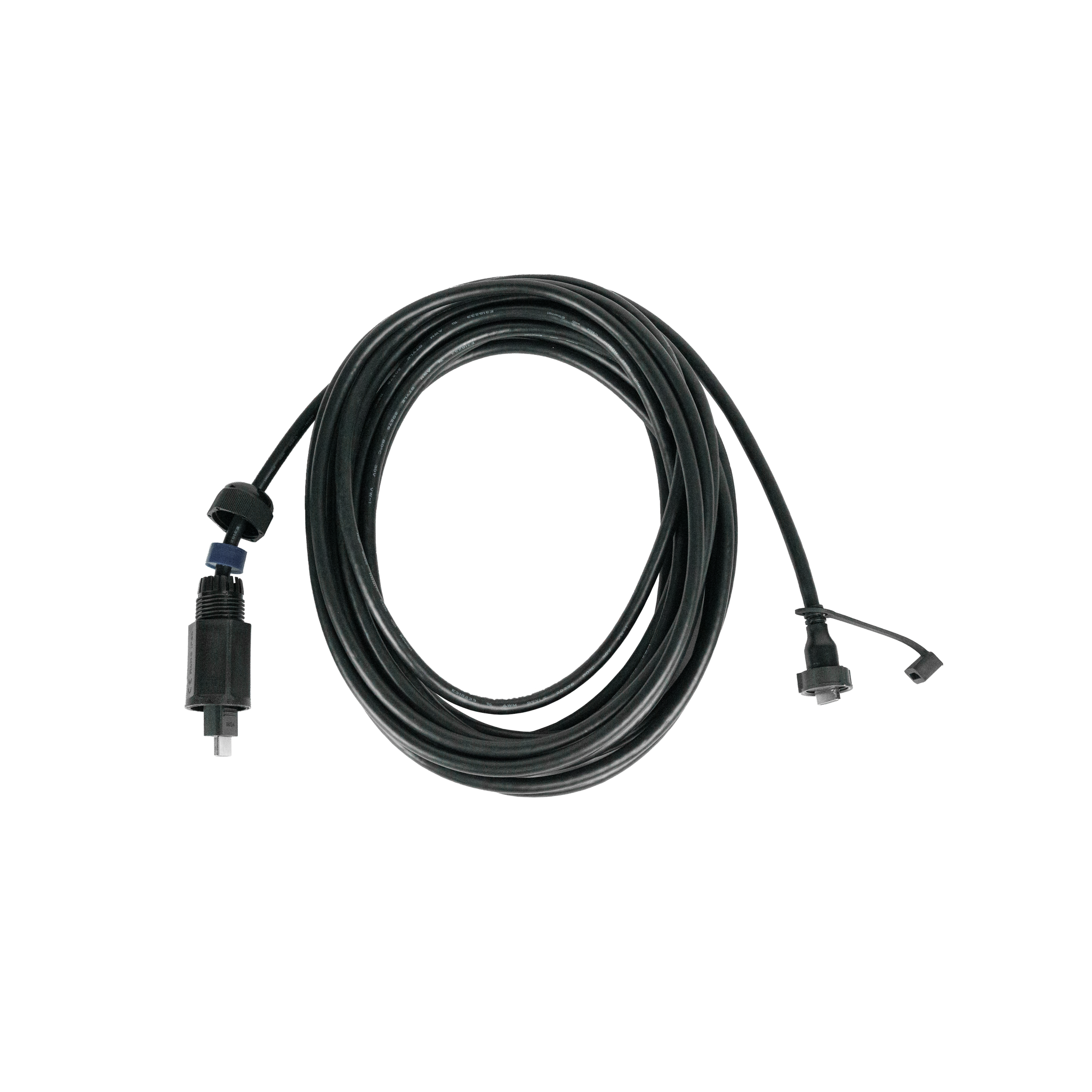

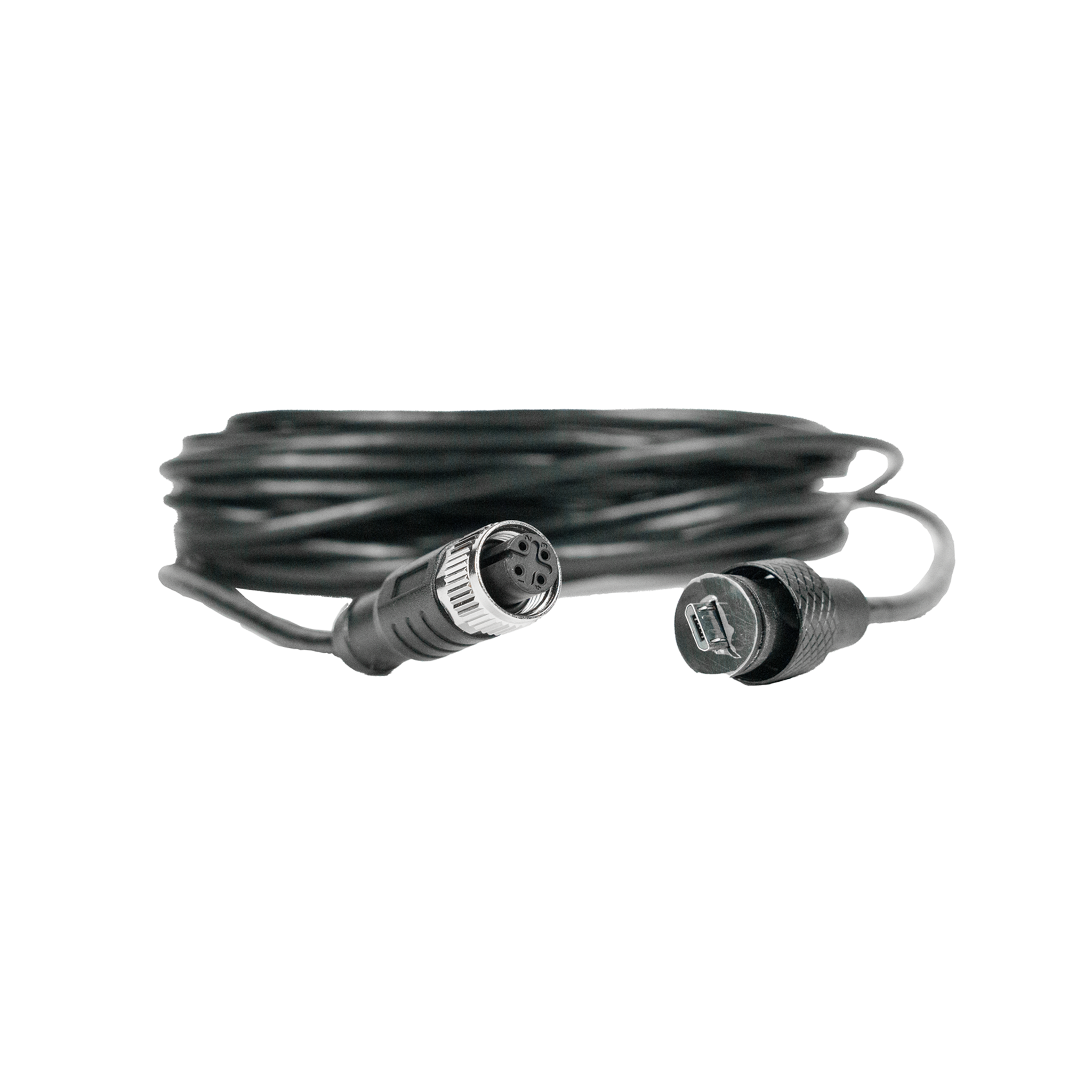

Cords/Cables
- HDMI CABLE - 8 meters (26 feet)

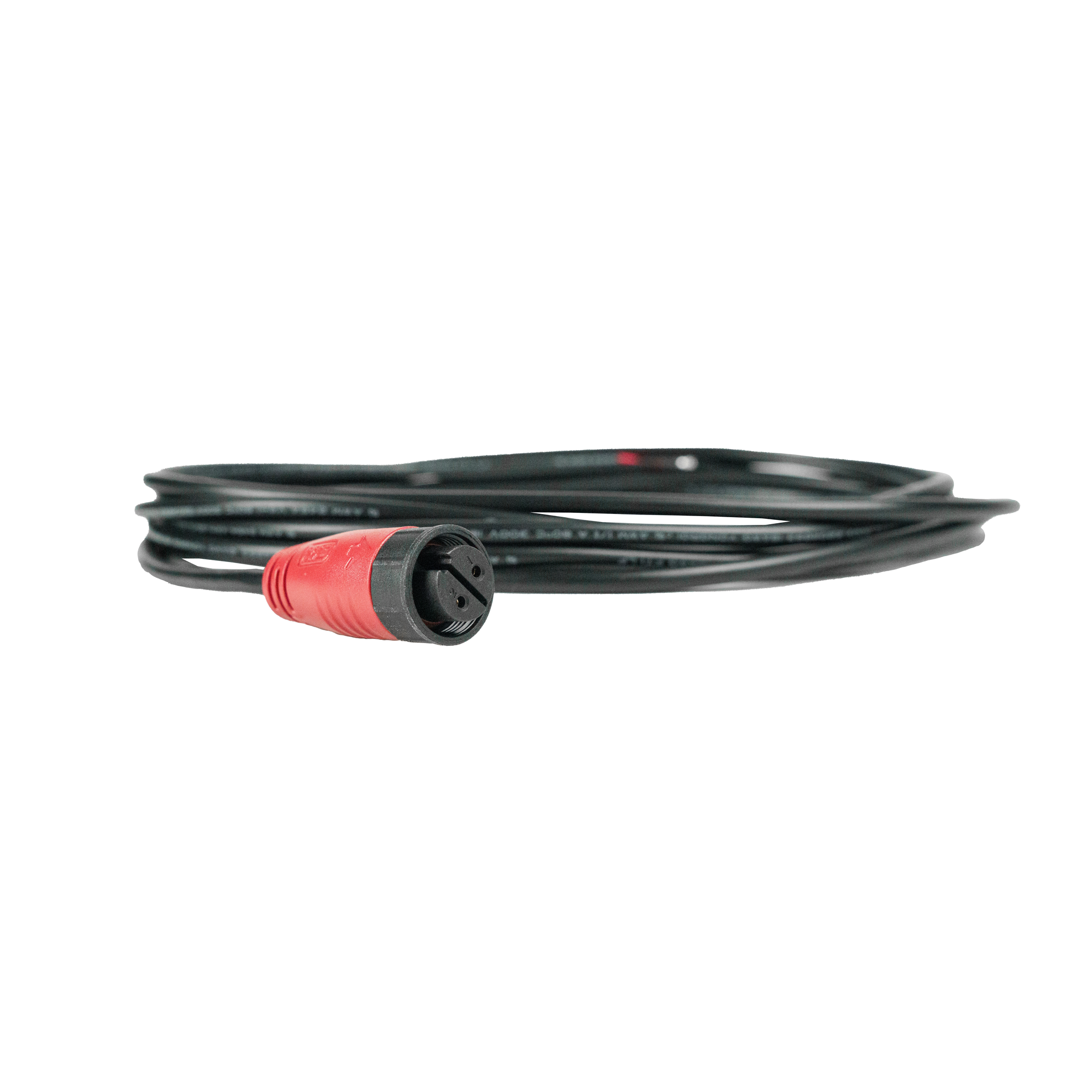

- DC POWER CABLE - 4 meters (13 feet)
- USB CABLE - 8 meters (26 feet)
Electrical Features
- POWER INPUT - 1 x DC 10V to 28V
- TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
- MAXIMUM CURRENT DRAW AT 12 VDC - 6A
Compatible Chart plotters
- GARMIN 8700
- GARMIN 1643 (XSV) or NON
- GARMIN 8610 8410 (XSV) or NON - some limitations
- GARMIN 8612 8412 (XSV) or NON
- GARMIN 8616 8416 (XSV) or NON
- GARMIN 1243 (XSV) or NON - some Limitations
