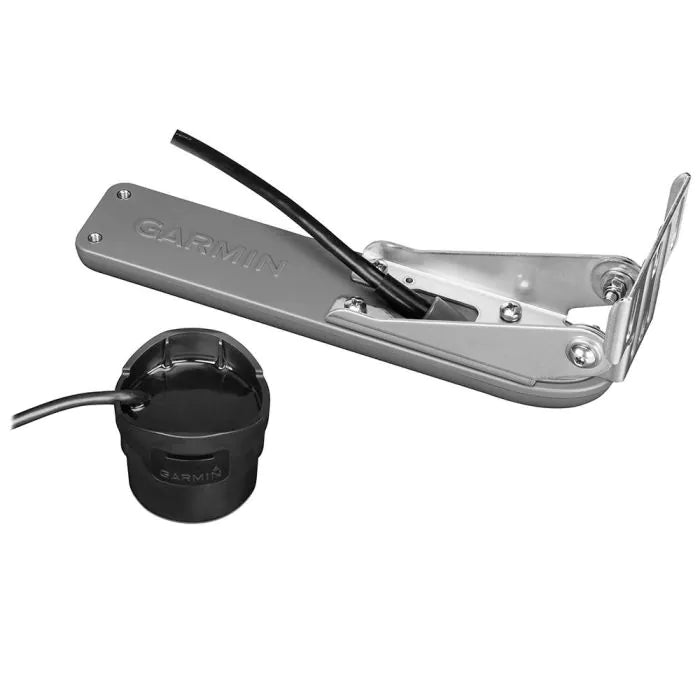

Garmin GT30-TM ClearVü/SideVü TM and GT8HW-IH High Wide In-Hull Transducer Bundle

GT30-TM ClearVü/SideVü TM and GT8HW-IH High Wide In-Hull Transducer Bundle

Perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar, this bundle consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat. This bundle includes a GT8HW-IH in-hull transducer, featuring high-wide CHIRP traditional sonar. The GT8HW-IH model is also an excellent choice for boats traveling at high speeds that want to maintain accurate depth readings. The GT30-TM transom mount transducer is also included and features CHIRP ClearVü and CHIRP SideVü scanning sonar.

This transducer bundle is ideal for fiberglass hulls, with a deadrise of 0° to 6°, where fishermen want traditional sonar at high speeds.

GT30-TM transducer specs:

Frequency: ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power: ClearVü/SideVü 500 W
Beamwidth: ClearVü (1.4x53 @ 455 kHz) & (0.8x30 @ 800 kHz); SideVü (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)
Maximum depth: ClearVü: 750 ft.; SideVü: 500 ft.
Depth and Temperature
Number of pins: 12-pin
Cable length: 20 ft.
Supported deadrise/Transom angles: 0°-70° degree transom
GT8HW-IH transducer specs

Frequency: CHIRP High Wide (145-230 kHz)
Power: 250 W
Beamwidth: 24-16
Maximum depth: 800 ft. freshwater
Depth only
Number of pins: 8-pin
Cable length: 20 ft.
Supported deadrise: 0°- 6° deadrise
WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Garmin
Manufacturer Part No : 010-12763-00
UPC : 753759204778
